AC Voltage Stabilisers & Power Line Conditioners

6 to 5000 kVA
Three Phase

Three Phase
Voltage Stabilizers & Power Line Conditioners

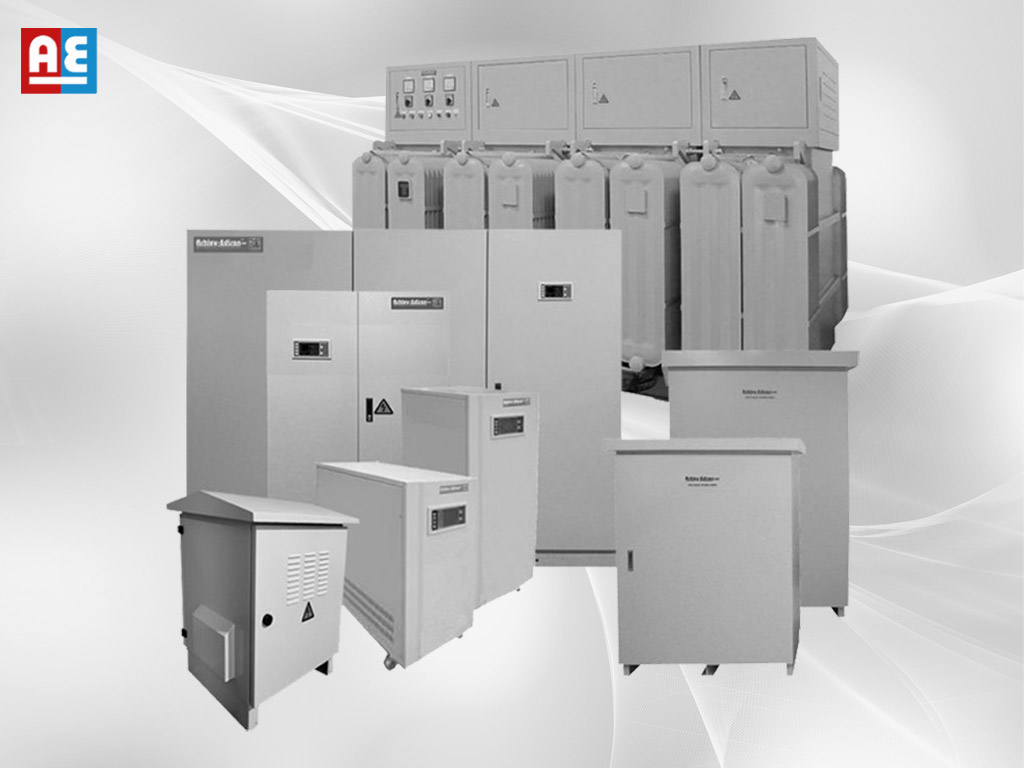

At Ashley-Edison (UK) our Three-Phase AC Voltage Stabilisers continuously monitor the incoming mains supply. If the voltage rises or drops, they will automatically control the output voltage – ensuring the voltage reaching the load equipment always remains constant at the required requisite voltage. Inbuilt protection features also continuously safeguard that the load against harmful mains born high energy surges, spikes, and transients.

For less prevalent situations, where electrical noise is also an issue on-site, most models are also available as Power Line Conditioners offering an enhanced level of Transient Voltage Surge & Spike Suppression (TVSS) protection and delivering the added benefit of filtering out any electrical noise and interference present on the incoming utility supply – ensuring what is commonly referred to as a ‘CLEAN’ supply.

To learn more about the comprehensive ranges of Three-Phase Voltage Stabilizers and Power Line Conditioners available from Ashley-Edison (UK) please check-out the series listings below:

For General Commercial & Industrial Applications

Our feature-rich SVR (Servo Electronic) and ESR (Static Electronic) Three Phase  Voltage  Stabilisers are our most popular and cost-efficient offerings.

Suitable for 95% of all applications, SVR & ESR Stabilizers not only guard against voltage fluctuations they also offer protection against all too common harmful high-energy surges, transients, and voltage spikes.

With independent phase control as standard on all three phase ranges, the voltage on each phase will always remain stable irrespective of load unbalance, even in situations where a 100%  load imbalance may exist.

6 to 3125 kVA

Servo & Static Voltage Stabilisers available

Servo Electronic

6 to 120 kVA
Three Phase – 3 & 4 Wire

Our Traditional Servo Electronic Stabiliser (SES) design digitally remastered for today’s demanding power environments

Also available in IP54 / NEMA 3 Style Enclosures (-IP54 Option) and as Power Line Conditioners (-PC Option)

Static Electronic

6 to 400 kVA
Three Phase – 3 & 4 Wire

Highly efficient microprocessor control. Ideal for today’s modern General Commercial & Industrial Applications

Also available in IP54 / NEMA 3 Style Enclosures (-IP54 Option) and as Power Line Conditioners (-PC Option)

Static Electronic

450 to 3125 kVA
Three Phase – 3 & 4 Wire

Specifically configured for the needs of larger sites

Also available in IP54 / NEMA 3 Style Enclosures (-IP54 Option) and as Power Line Conditioners (-PC Option)

For Rugged Industrial Applications

Designed for maximum reliability, making them ideal for the toughest of applications, Ashley-Edison (UK) Oil Immersed and Air Cooled AC Automatic Voltage Stabilizers and Regulators enhance power quality, providing industrial-grade regulation and power protection.

With ratings from 250 to 5000 kVA, and offering permissible input voltage windows of up to ± 40%, our rugged Industrial Stabilizers have been tried, tested, and extensively proven in some of this world’s harshest industrial and most challenging power environments.

Based on the latest in magnetic induction brushless technology, models are available with, or without, independent phase control.

250 to 5000 kVA

Industrial Voltage Stabilisers available

Magnetic Induction
Oil Immersed
With Independent
Phase Control

250 to 3000 kVA
Three Phase –  3 & 4 Wire

Oil Cooled “Brushless” Industrial design – with Independent Phase Control.

Oil Immersion considerably enhances cooling efficiencies and as a result delivers, in terms of physical size, a highly compact voltage regulation solution.

Also available as an ISO Containerised solution with associated Switchgear (-ISO-MSB Option).

Magnetic Induction
Oil Immersed
Without Independent
Phase Control

250 to 5000 kVA
Three Phase –  3 & 4 Wire

Oil Cooled “Brushless” Industrial design – without Independent Phase Control.

Oil Immersion considerably enhances cooling efficiencies and as a result delivers, in terms of physical size, a highly compact voltage regulation solution.

Also available as an ISO Containerised solution with associated Switchgear (-ISO-MSB Option).

Magnetic Induction
Air Cooled
With Independent
Phase Control

250 to 2000 kVA
Three Phase –  3 & 4 Wire

Air Cooled “Brushless” Industrial design – with Independent Phase Control.

Also available in IP54 / NEMA 3 Style Enclosures (-IP54 Option) or as an ISO Containerised solution with associated Switchgear (-ISO-MSB Option).

Magnetic Induction
Air Cooled
Without Independent
Phase Control

250 to 2000 kVA
Three Phase –  3 & 4 Wire

Air Cooled “Brushless” Industrial design – without Independent Phase Control.

Also available in IP54 / NEMA 3 Style Enclosures (-IP54 Option) or as an ISO Containerised solution with associated Switchgear (-ISO-MSB Option).
